Side Mount Negative 2-2 Port Side Black
Power-Pole Side Mount to Jack-Plate Negative 2" aft setback 2" Rise, Port Side, Black PK-S-N2-2-P-BLK
Fits most Ranger, Triton, Stratos, Phoenix and Champion bass boats with jack plates listed below. Must be mounted minimum of 3" off transom for clearance.

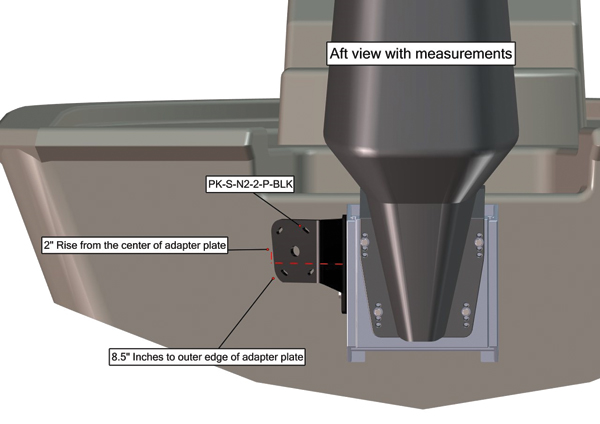

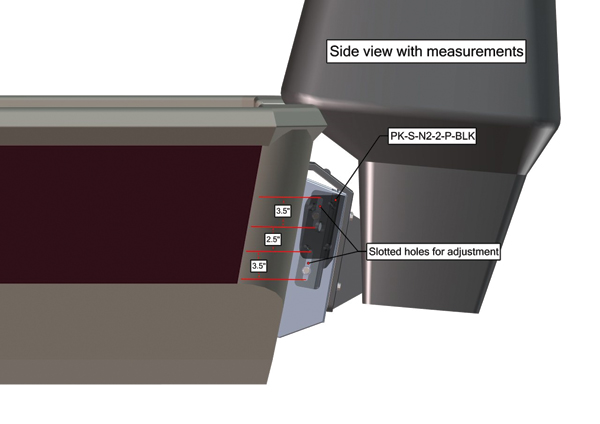

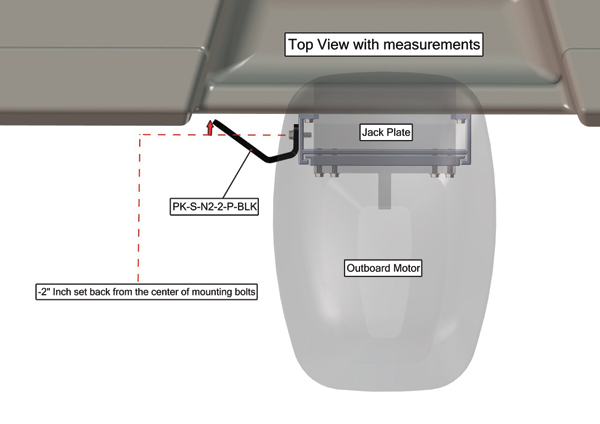

For non-transom-mounted installations. Power-Pole adapter plate mounting kit mounts to side of certain jack-plates. Provides 0" setback and 6" rise. Mounts port side of motor. Black.
We recommend that S style adapter plates be used on any of the following jack plates:
For all other brand jack plates, please consult the manufacturer before ordering and installing our side-mounted adapter plates.
Mounting Hardware for the respective jack-plate will be required (sold separately).
If used with the 10ft Blade requires a Plate Kit Brace (PKB-short-2) and Bolt Set for respective jack plate.
Considerations when choosing the correct adapter plate include the presence of swim ladders/platforms, trim tabs, poling platforms, etc.
Power-Pole adapter plates are constructed of rugged, lightweight, 1/2" aluminum and feature a powder-coated finish for corrosion resistance.
This plate kit includes one adapter plate, shim for opposite side of motor, and mounting hardware for Power-Pole anchor.
